New Digital High Technology
Safety, Flexibility, Reliability, Convenience and Compact Design

ANPM(Automatic Neutral Plate Monitoring)

• Protect patients from possible burns due to inadequate contact of the dual return plate
• Alarm will sound and output automatically cut off in the event of a loss of contact

Bipolar Cutting & Coagulation

Two Modes of Monopole Cutting & Coagulation

User Memory Function
Save the setting of each users(Memory from 0 to 9)

 Three Different Audible Signals
The MEDITOM Basic series have different audible signals for cut & coagulation and bipolar cut & coagulation.

 Application

·         General Surgery, Gynecology
·         Dermatology, Plastic Surgery
·         Endoscopy, Vascular Surgery
·         Heart / Thoracic Surgery
·         ORL / ENT, Oral Surgery
·         Pediatric Surgery
·         MIS(Minimally Invasive Surgery)
·         Neurosurgery, Orthopedics
·         Urology, Trans Urethral Resection (T.U.R)

Specifications

·         Main Frequency : 400, 482 KHz
·         Repetition Rate : 33 KHz
·         High Frequency Leakage Current : Less than 150 mA
* Patient leads to Ground : Less than 0.01 mA
* Chassis to Ground : Less than 0.1 mA
·         Duty Cycle : 10 Seconds On, 30 Seconds Off
·         Power Source : 110/220 VAC, 50/60 Hz
·         Power Consumption : Less than 950 VA
·         Dimension(H x W x D) : 137 x 300 x 395mm
·         Weight : Approx. 17Kg

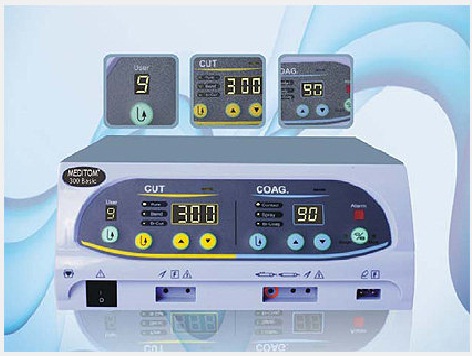

MEDITOM 300 Basic
